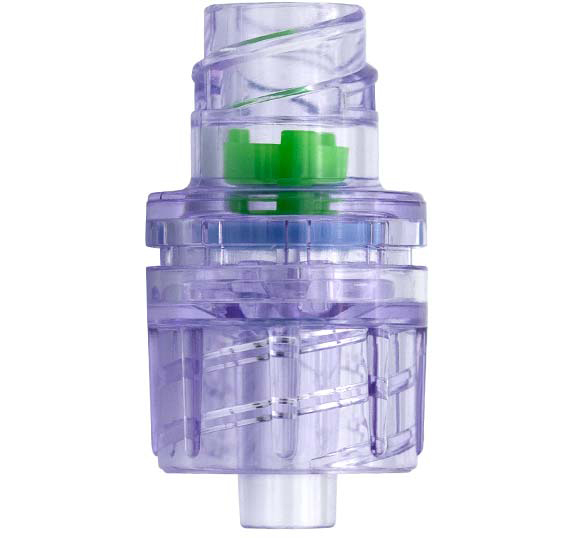

Luer Activated Valves

Unique Actuator Design

Luer Activated Valves allow for bi-directional flow while actuated with an ISO-compliant Luer. This unique actuator design allows for infusion and aspiration with an optimized flow pattern to enable complete flushing. The Luer Activated valve also features a closed silicone diaphragm that checks flow until mechanically opened with an ISO Luer device.

Luer Activated Valves
icon

Compliant to ISO 8536-12 counter-flow requirements for maximum protection against retrograde flow reduces the risk of medication not getting to the patient

icon

Operates in any orientation reducing sensitivity to set configurations

icon

No solvent residuals — ultrasonically welded providing excellent leak resistance


ORDERING INFORMATION

FLL = Female Luer Lock

MLL = Male Luer Lock

INLET / OUTLET

PART NUMBER

HOUSING MATERIAL

PRIMING VOLUME

FLL/MLL

5N02-D300-SSM41G

Polycarbonate

0.14 ml





REFERENCES
  1. Data on file at NP Medical, Inc.
