Pressure Activated Valves

High Performance for Critical Care

The Pressure Activated Valve is used extensively as a "one-way" valve in critical drug delivery applications, and as an "anti-siphon" valve in pump applications.

It targets patient applications requiring very specific performance characteristics such as high-pressure rating and narrow specification ranges for key attributes. The valve features a preloaded, normally closed silicone diaphragm that allows flow in one direction while checking flow in opposite direction and preventing retrograde flow. The valve's clear housing facilitates visualization of the entire fluid path.

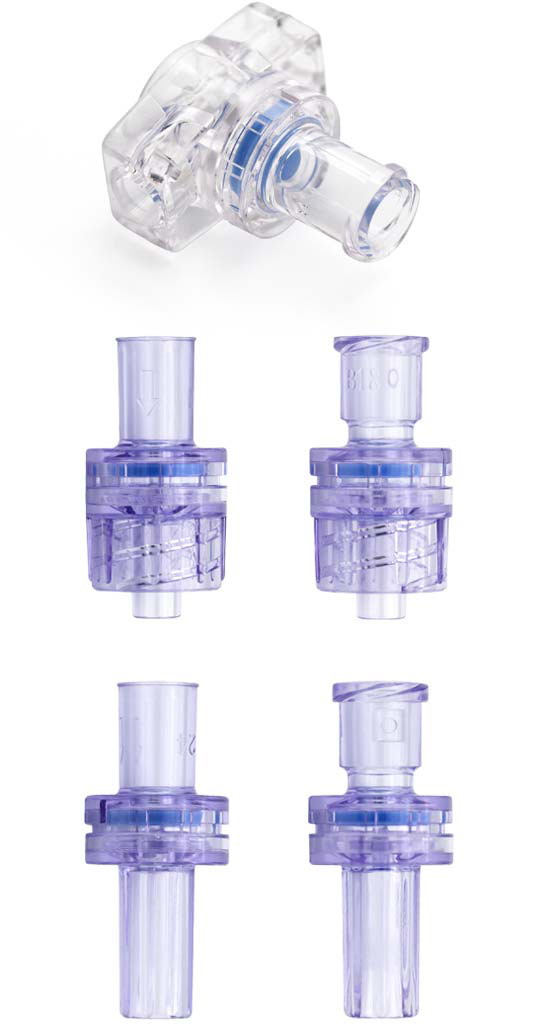

Pressure Activated Valves
icon

Low priming volume allows for lower flush volumes and drug hold up

icon

100% inline tested for backflow and weld leaks on automated assembly equipment providing high quality levels

icon

Operates in any orientation reducing sensitivity to set configurations

icon

No solvent residuals - ultrasonically welded providing excellent leak resistance

For flexibility with your application, these valves are available in a range of opening pressures and various inlet and outlet configurations.


ORDERING INFORMATION

FLL = Female Luer Lock

MLL = Male Luer Lock

TB = Tube Bond

INLET / OUTLET

PART NUMBER

HOUSING MATERIAL

AVERAGE OPENING PRESSURE

PRIMING VOLUME

FLL/TB 0.132” (3.35mm)

5N02-B400-SSM41

Polycarbonate

2.9 psi / 200 mbar

0.25 ml

FLL/TB 0.117” (2.97mm)

5N02-B700-SSM41

Polycarbonate

2.2 psi / 155 mbar

0.24 ml

FLL/MLL

5N02-B800-SSM16

Polycarbonate

0.1 psi / 7 mbar

0.22 ml

FLL/TB 0.132” (3.35mm)

B350-SSM45

Polycarbonate

4.0 psi / 275 mbar

0.24 ml

FLL/TB 0.132” (3.35mm)

B370-SSU45*

Polycarbonate

5.7 psi / 393 mbar

0.24 ml

FLL/MLL

B900-SSM41

Polycarbonate

3.5psi / 241 mbar

0.18 ml

FLL/MLL

B900-SSM45

Polycarbonate

4.2 psi / 292 mbar

0.18 ml

FLL/MLL

B950-SSU45*

Polycarbonate

5.7 psi / 393 mbar

0.18 ml

FLL/T-style TP, ID 0.149”-0.163” (4mm)

5N02-C100-EEM45

Co-polyester

4.3 psi / 296 mbar

0.29 ml

TB 0.117”/TB 0.117” (2.97mm)

T330-SSM45

Polycarbonate

4.0 psi / 275 mbar

0.24 ml

TB 0.117”/TB 0.117” (2.97mm)

T333-SSU45*

Polycarbonate

5.7 psi / 393 mbar

0.24 ml

TB 0.117” (2.97mm)/MLL

T300-SSM45

Polycarbonate

4.0 psi / 275 mbar

0.24 ml

TB 0.117” (2.97mm)/MLL

T303-SSU45*

Polycarbonate

5.7 psi / 393 mbar

0.24 ml

TB 0.117” (2.97mm)/MLL

T305-SSM16

Polycarbonate

0.1 psi / 7 mbar

0.24 ml

TB 0.163”/TB 0.163” (4.1mm)

T440-SSM45

Polycarbonate

4.0 psi / 275 mbar

0.24 ml

TB 0.163”/TB 0.163” (4.1mm)

T440-SSM45

Polycarbonate

5.7 psi / 393 mbar

0.24 ml

TB 0.163”(4.1mm)/MLL

T400-SSM45

Polycarbonate

4.0 psi / 275 mbar

0.24 ml

TB 0.163”(4.1mm)/MLL

T403-SSU45*

Polycarbonate

5.7 psi / 393 mbar

0.24 ml

TB 0.163”(4.1mm)/MLL

T405-SSM16

Polycarbonate

0.1 psi / 7 mbar

0.24 ml

TB 0.132” / TB 0.132” (3.35mm)

T550-SSM41

Polycarbonate

4.0 psi / 275 mbar

0.24 ml

TB 0.132” (3.35mm)/MLL

T505-SSM16

Polycarbonate

0.1 psi / 7 mbar

0.24 ml

FLL/TB 0.117” (2.97mm)

B700-SSU45*

Polycarbonate

5.7 psi / 393 mbar

0.24 ml

FLL/TB 0.163” (4.1mm)

B450-SSM41

Polycarbonate

4.0 psi / 275 mbar

0.24 ml

FLL/TB 0.163” (4.1mm)

B450-SSU45*

Polycarbonate

5.7 psi / 393 mbar

0.24 ml



*High Pressure Rated



REFERENCES
  1. Data on file at NP Medical, Inc.
